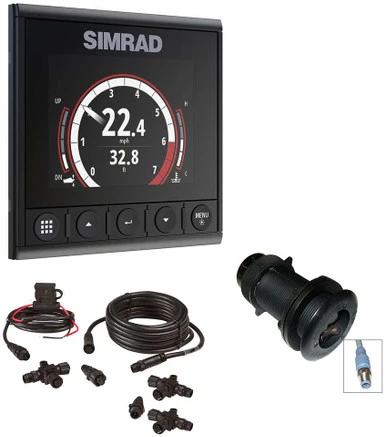

Simrad 000-13293-001 IS42 Speed/Depth Pack

IS42 Speed/Depth Pack – IS42 Digital Display, DST800 Ducer & N2k Backbone Starter Kit

The IS42 is a smart multi-purpose instrument featuring a full color display and modern glass helm styling. View wind, speed, depth, engine data, autopilot status and more at a glance, or add the optional OP12 keypad to take full control of your Simrad autopilot system. The IS42 integrates brilliantly with Simrad multifunction displays and glass helm systems, or can function as a standalone instrument display and autopilot controller aboard smaller vessels.

Features:

• Optically bonded 4.1″ color display
• Multi-purpose digital instrument
• Display wind, speed, depth, engine data, autopilot status and more
• Intuitive operation
• Easy installation
• Add an OP12 keypad for full Simrad autopilot control
• Compatible with Simrad AC12, AC42, NAC-2 and NAC-3 autopilot computers
• Low-profile glass helm design
• Low power consumption
• Certified NMEA 2000® connectivity

Specifications:

• Dimensions: 118 x 115 x 28mm (4.6″ x 4.5″ x 1.1″)
• Weight: 0.32kg (0.7lbs)
• Power Consumption: 1.8 Watts (MAX)
• Network Load: 3 LEN
• Color: Black
• Display Size: 4.1″ (diagonal). 4:3 Aspect ratio
• Display Type: Transmissive TFT-LCD, bonded. White LED backlight
• Dsiplay Resolution: 320 x 240 pixels
• Illumination: White for day mode. Red, green, blue or white for night mode
• Environmental Protection, Waterproof: IPx7
• Environmental Protection, Humidity: up to 95% RH
• Compass Safe Distance:300mm (1.0″)
• Temperature Operating: -15 to +55°;C (5°;F to +131°;F)
• Temperature Storage: -30 to +70 °;C (-22 to +158°; F)
